Lead Glass

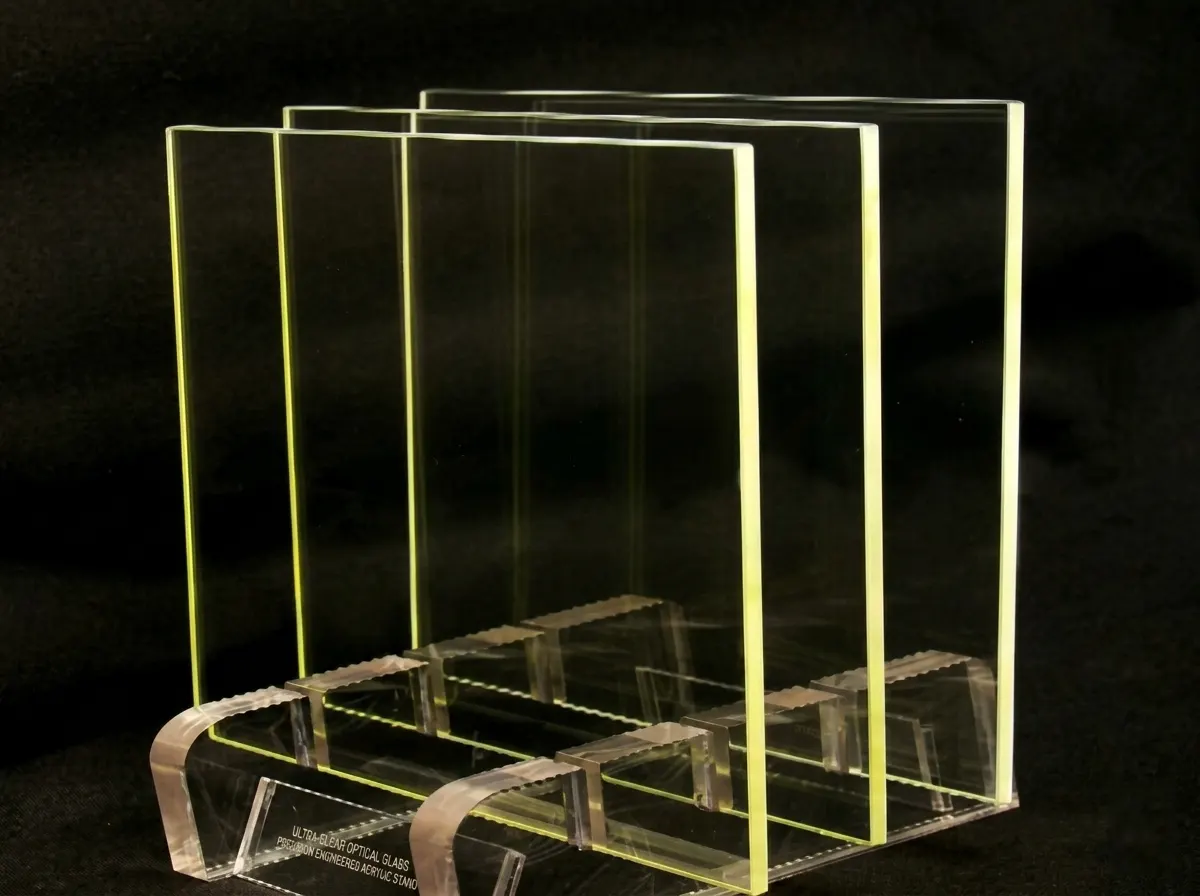

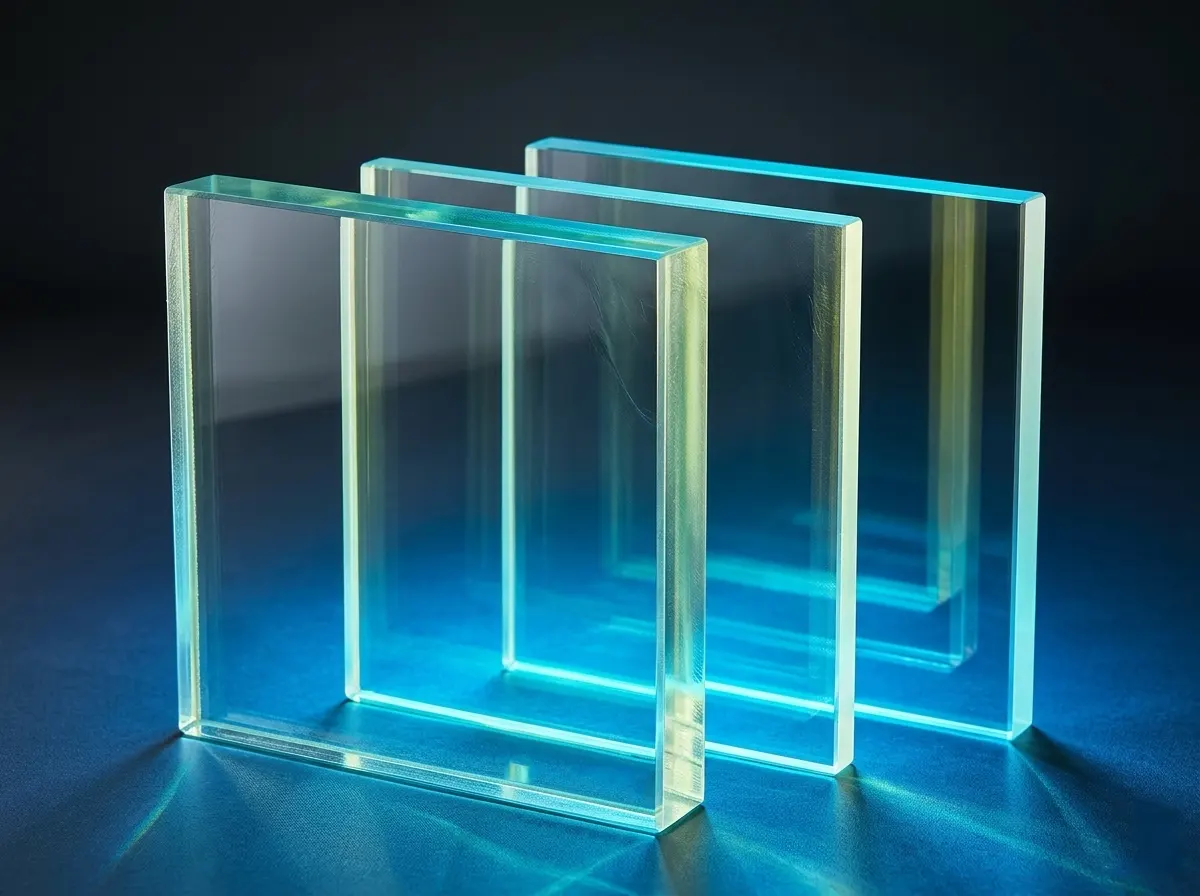

X-ray glass, also referred to as radiation shielding glass or lead glass, is leaded glass that provides shielding protection by absorbing the energy of radiation. The shielding effect is created by a high concentration of lead & barium and the glass can be optically clear or have a slight yellow tint. Lead lined glass is manufactured in a variety of sizes, shapes and thicknesses depending on the intended application. Typically, the thicker the lead glass, the higher the level of radiation shielding.

Radiation shielding glass provides protection while allowing technicians to view imaging or radiation therapy procedures and is used in permanent and modular shielding applications. Leaded glass can also be laminated to meet safety specifications for impact resistance.

Medical and Laboratory Applications for Leaded X-Ray Glass

Lead lined glass is widely used for medical applications because it provides high visibility without compromising the ability to monitor patients during treatment and procedures. Both leaded glass windows and leaded x-ray glass barriers are available in a range of sizes and thicknesses to meet shielding requirements.

Common medical applications for radiation shielding glass include:

  • Observation windows for x-ray, CT scan, Fluoroscopy, and P.E.T. imaging.
  • Protective windows in laboratories
  • Protective screens for medical diagnostics

Lead Glass (X-Ray Glass, Radiation Shielding Glass, Leaded Glass) Standard Sizes

  • 200 mm x 254 mm (8” x 10”)
  • 305 mm x 305 mm (12” x 12”)
  • 355 mm x 355 mm (14” x 14”)
  • 600 mm x 900 mm
  • 900 mm x 900 mm
  • 900 mm x 1200 mm
  • 800 mm x 1000 mm
  • 1200 mm x 1000 mm
  • 1500 mm x 1000 mm
  • 2000 mm x 1000 mm
  • 2400 mm x 1200 mm
